Wuhan ETERN Optoelectronics Technology Co.,Ltd. Robust Innovation, Fusion and Win-win
5 Years
| Ask Lasest Price | |
| Brand Name : | Wuhan ETERN Optoelectronics |
| Model Number : | FLS25C010S |
| Certification : | SFF-8431,SFF-8432 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100k per month |
Feature:
1. Compliant to SFP+ MSA
2. Fully RoHS Compliant
3. All metal housing for superior EMI performance
4. Operating data rate up to 25.78Gbps
5. High sensitivity Pin photodiode and TIA
6. Up to 70m transmission on MMF OM3 and 100m transmission on MMF OM4
7. LC duplex connector
8. Hot pluggable 20pin connector
9. Low power consumption<1.2 W
10. 0℃ to 70℃operating wide temperature range
11. Single +3.3V±5% power supply
12. Digital Monitoring SFF-8472 Rev10.2 compliant
Description:

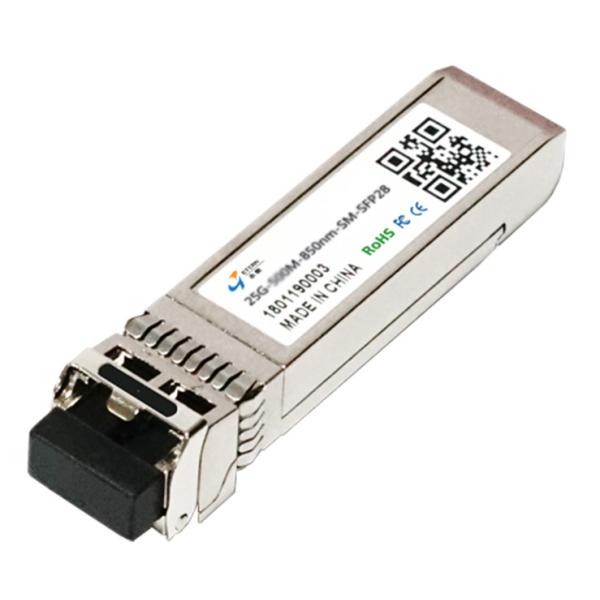

The laser based 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over multimode optical fiber with 100m. They are compliant with SFF-8431,SFF-8432. The transmitter converts serial CML electrical data into serial optical data compliant with the IEEE802.3by standard. The receiver converts serial optical data into serial CML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
| Description: | 25Gbps-100M-850nm-MM-SFP28 |
| Part NO: | FLS25C010S |
| Package: | SFP28 |
| Date Rate (bit/s): | 25G |
| Wavelength: | 850nm |
| Reach: | 100M |
| TOP°C: | 0℃ ~ 70℃ |
Ordering Information:
| Description | Part NO. | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | |
| 25G | 25Gbps-100M-850nm-MM-SFP28 | FLS25C010S | SFP28 | 25G | 850nm | 100M | 0℃ ~ 70℃ |
|
|
