| Brand Name : | Wuhan ETERN Optoelectronics |
| Model Number : | FLS25C241S-Dxx |
| Certification : | CE RoHS FCC |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100k per month |

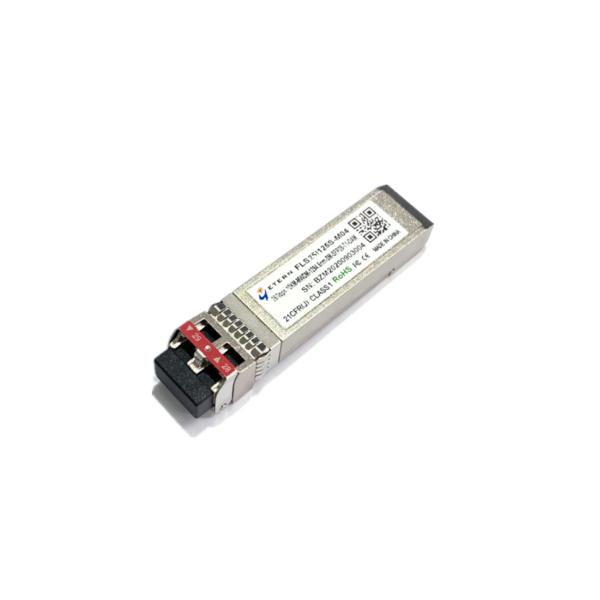

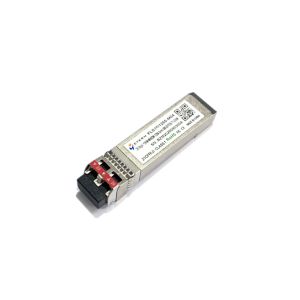

SFP28-optical transceiver 25Gbps 10KM DWDM
Features
1. Compliant to SFP28 MSA
2. Fully RoHS Compliant
3. All metal housing for superior EMI performance
4. Operating data rate up to 25.78Gbps
5. High sensitivity Pin photodiode and TIA
6. LC duplex connector
7. Hot pluggable 20pin connector
8. Low power consumption<2 W
9. 0℃ to 70℃operating wide temperature range
10. Single +3.3V±5% power supply
11. Digital Monitoring SFF-8472 Rev10.2 compliant
Specification:
| Description: | 25Gbps-10KM-DWDM-SM-SFP28 |
| Part NO: | FLS25C241S-Dxx |
| Package: | SFP28 |
| Date Rate (bit/s): | 25G |
| Wavelength: | 1528nm-1563nm |
| Reach: | 10KM |
| TOP°C: | 0℃ ~ 70℃ |
Description:
The laser based 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over single mode optical fiber with 10KM. They are compliant with SFF-8431,SFF-8432. The transmitter converts serial CML electrical data into serial optical data. The receiver converts serial optical data into serial CML electrical data.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Ordering Information:
| Description | Part NO. | Package | Date Rate (bit/s) | Wavelength | Reach | TOP (C) | |
| 25G | 25Gbps-10KM-DWDM-SM-SFP28 | FLS25C241S-Dxx | SFP28 | 25G | 1528nm-1563nm | 10KM | 0℃ ~ 70℃ |
|
|
